UHMW-PE (ULTRA-HIGH - MOLECULAR-WEIGHT POLYETHYLENE)

Ultra-high-molecular-weight polyethylene (UHMW-PE) is a subset of thermoplastic polyethylene. It is also known as high-modulus polyethylene. It has extremely long chains. The long chain transfers load more effectively to the polymer backbone by strengthening intermolecular interactions. This results in a very tough material with the highest impact strength.


    • Density - 0.933-0.945
      Unit - g/cm²
      Standard - ISO 1183

    • Elongation at Break (εR) - >50
      Unit - %
      Standard - ISO 527

    • Ultimate Tensile Strength - >38
      Unit - N/mm²
      Standard - ISO 527

    • Shore Hardness - D Scale - 65-68
      Unit -
      Standard - ISO 868

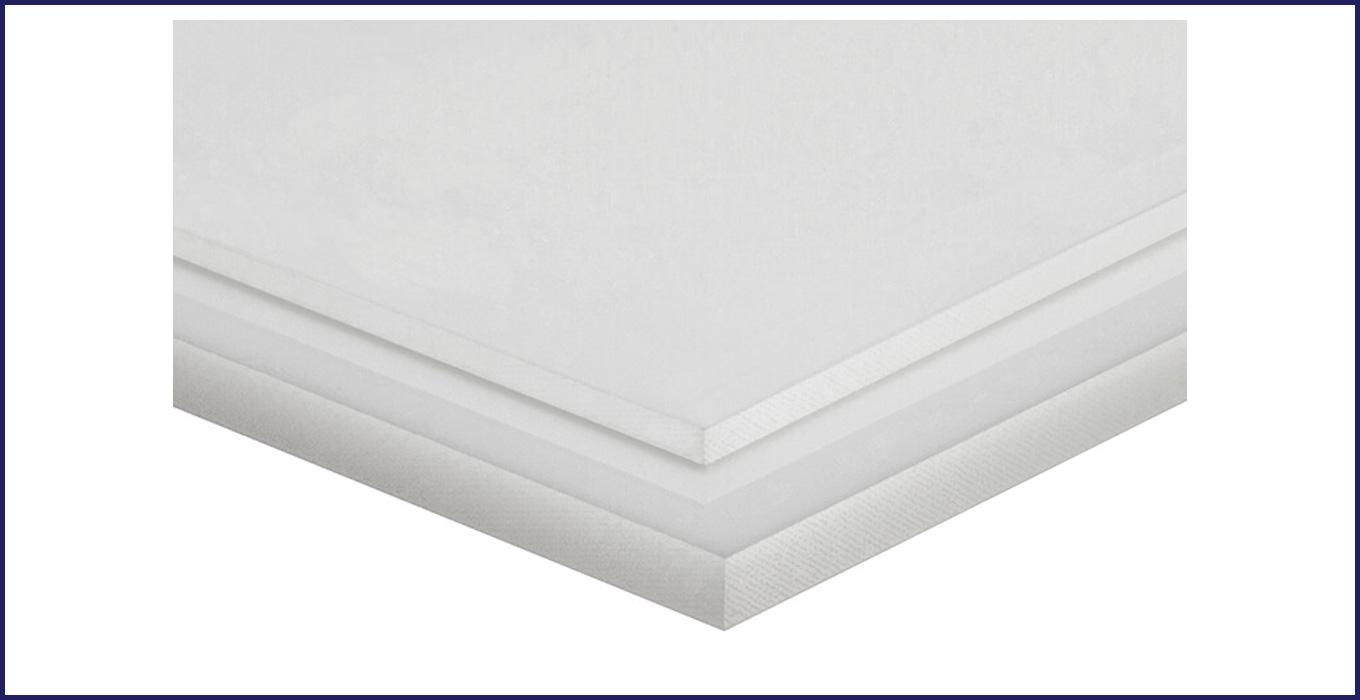

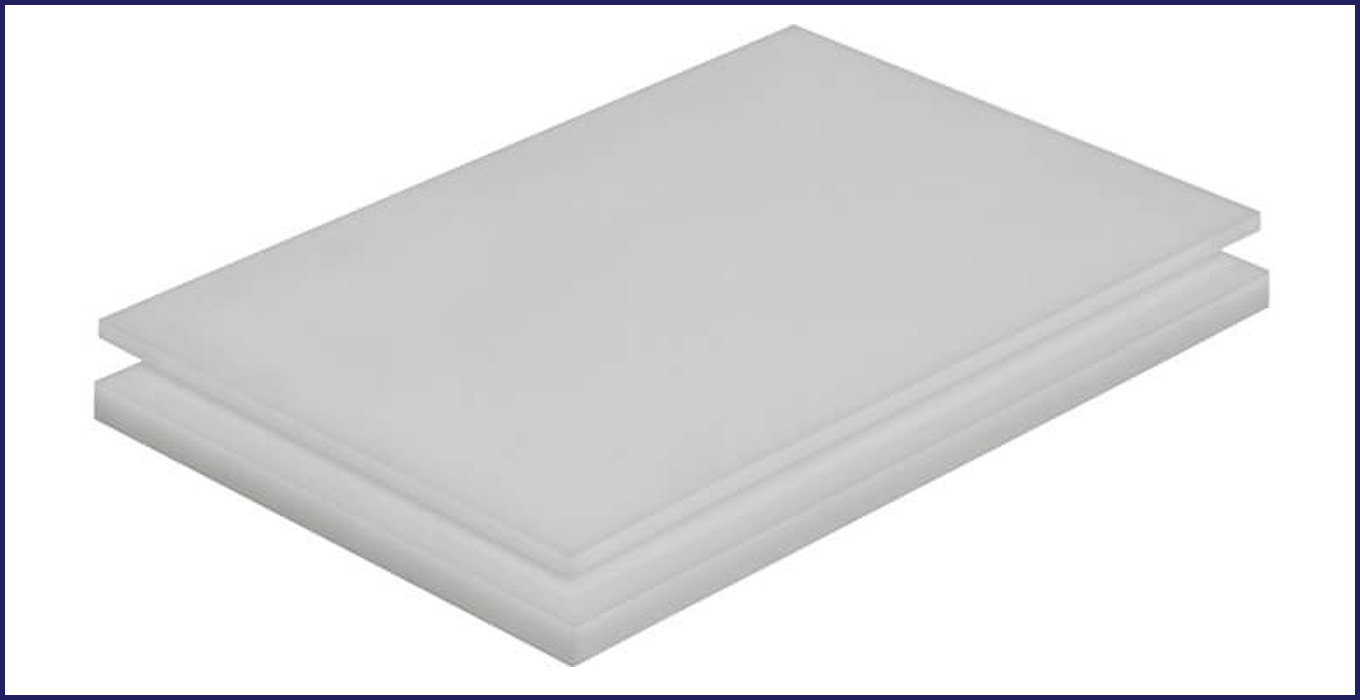

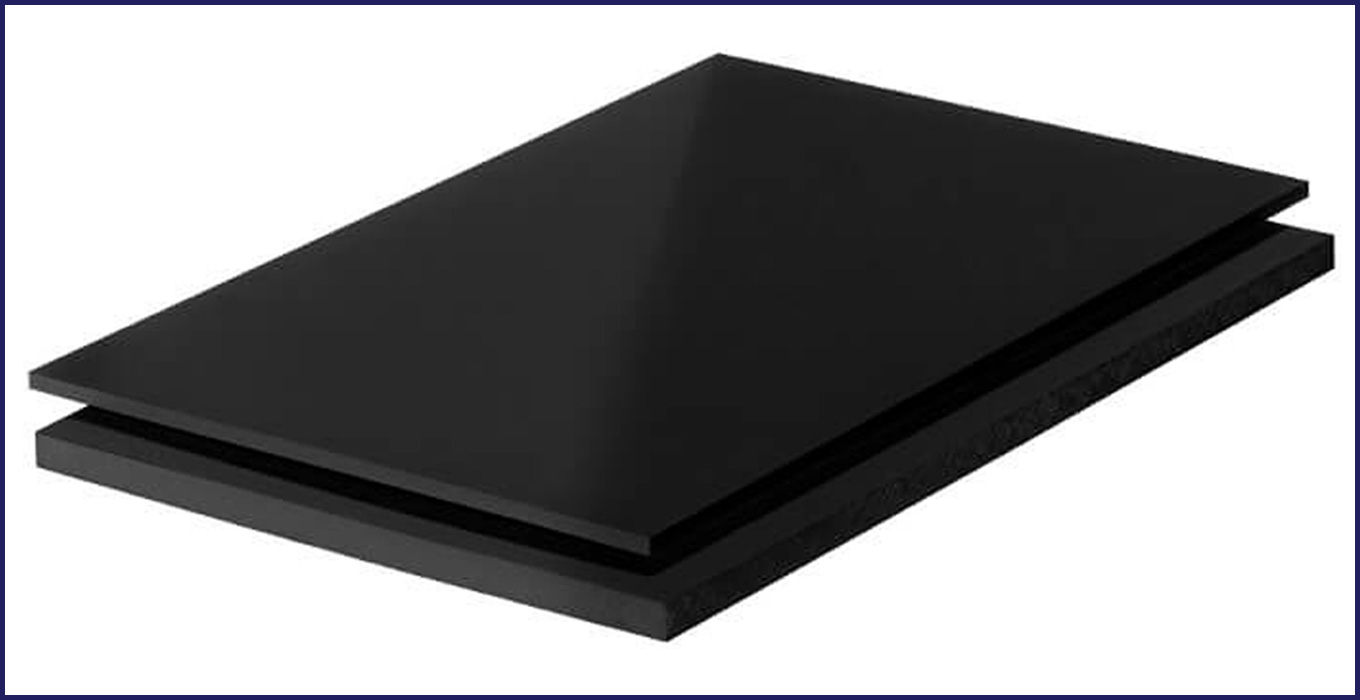

  • 1 mm to 12 mm. Width Maximum 1.5 mtr, Extruded.
  • 15 mm. Width Maximum 1.22 mtr, Extruded.
  • Above 15 mm to 25 mm. Width Maximum 1 mtr, Extruded.



CPVC


Polyvinyl Chloride

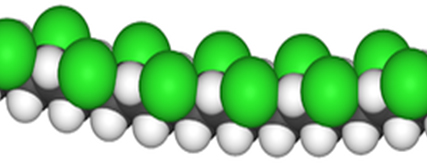

Polyvinyl Chloride (PVC) is produced by polymerizing the monomer vinyl chloride. PVC sheets can be fabricated and installed. PVC Sheets exhibit high impact strength and are ideal for heavy-duty industrial applications.

PVC sheets are extruded in a variety of thicknesses and colors. As flat sheets, PVC is often expanded to create voids in the material's interior, providing consistency without additional weight and cost. Sheets are cut using a saw and rotary cutting equipment.


Photography Equipments, Chlorination Equipments, RO plants, Liners for Bullets, Industrial Equipments , Tanks , Vessels, Control Cabinets and Panels, Partition Panels, Curtains, Decorative Sheets, etc.

    • Density - 1.56
      Unit - gm/cm³
      Standard - ISO 1183

    • Yield Stress - 53
      Unit - Mpa
      Standard - ISO 527

    • Modulus of Elasticity - 2000
      Unit - Mpa
      Standard - ISO 527

    • Vicat Softening Temperature - 95
      Unit - (degree) C
      Standard - ISO 306

    • Flammability - Low-flammability
      Unit - %
      Standard - DIN 4102
