PRESSURE VESSELS

  • Home
  • Products
  • FABRICATION AND SERVICES
  • Pressure Vessels

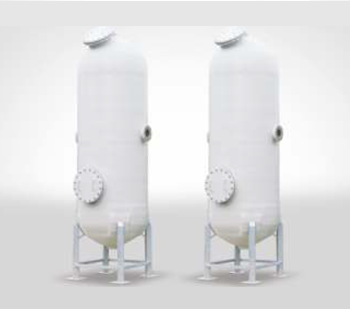

Vertical Pressure

Note

• Agitator Assembly to be independently supported of vessel.
• Rectangular, Horizontal Vessels can be also be fitted with Agitator.



    • D (mm) - 600 - 2000
      H (mm) - 600 - 2000
      Capacity (liters) : 200 - 6000
      Pressure : upto 2kg/cm2
      Vacuum : Full-VE pressure of 760mm Hg

    • Specifications
      BS4994 - IS875 - 2ASTM D3299000
      IS10661 - ASME section-X - IS1872
      PS15-69 - ASTM D4097 - Bs5500


Horizontal Pressure

Note

• Agitator Assembly to be independently supported of vessel.
• Rectangular, Horizontal Vessels can be also be fitted with Agitator.



    • D (mm) : 600 - 2000
      H (mm) : 600 - 2000
      Capacity (liters) : 200 - 6000
      Pressure : upto 2kg/cm2
      Vacuum: Full-VE Pressure of 760mm Hg
      Specification: Refer item no. 1


Vacuum Pressure

Note

• Agitator Assembly to be independently supported of vessel.
• Rectangular, Horizontal Vessels can be also be fitted with Agitator.



    • D (mm) - 600 - 2000
      H (mm) - 600 - 2000
      Capacity (liters) : 200 - 6000
      Pressure : upto 2kg/cm2
      Vacuum : Full-VE pressure of 760mm Hg

    • Specifications
      BS4994 - IS875 - 2ASTM D3299000
      IS10661 - ASME section-X - IS1872
      PS15-69 - ASTM D4097 - Bs5500


Reactor Pressure

Note

• Agitator Assembly to be independently supported of vessel.
• Rectangular, Horizontal Vessels can be also be fitted with Agitator.



    • D (mm) - 600 - 2000
      H (mm) - 600 - 2000
      Capacity (liters) : 200 - 6000
      Pressure : upto 2kg/cm2
      Vacuum : Full-VE pressure of 760mm Hg

    • Specifications
      BS4994 - IS875 - 2ASTM D3299000
      IS10661 - ASME section-X - IS1872
      PS15-69 - ASTM D4097 - Bs5500


Agitator

Note

• Agitator Assembly to be independently supported of vessel.



    • Agitator Type : Pitch Blade, Flat Blade /Curve Blade Turbine
      Internals : Baffle Plates
      Externals : Motor / Gearbox / Stuffing Box / Bearing & Housing / Agitator & Shaft / Coupling
